    Muti Bag Industrial Basket Strainer 0.05MPa Rated Flow Resistance

    Ask Lasest Price
    Brand Name : Lier filter
    Certification : CE GB
    Price : 10$~100$
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram,
    Supply Ability : 1000
    Delivery Time : 15~30days
    • Product Details
    • Company Profile

    Muti Bag Industrial Basket Strainer 0.05MPa Rated Flow Resistance

    Industrial Filter Element , Resistance At Rated Flow≤0.05MPa



    Introduction
    Once the water filter enters the plumbing system, water will enter the water filter from the water inlet. The filtered water will flow out from the water outlet. When water impurities can pass through the mesh core, it will be intercepted on the mesh core due to its larger volume than the mesh core hole. When accumulated to a fixed amount, there is a fixed differential pressure between the inlet and outlet. At this time, the rotatable mesh core is automatically backwashed in turn, and the impurities will be discharged from the sewage outlet by itself. In this way, the user can cycle back and forth according to the water impurities



    parameter

    Type

    Model

    Dimension(mm)

    Connection

    Bag

    Flow rate(m3/h)

    Diameter

    Height

    Size

    Q'ty(pc)

    Single Bag Filters

    BJD1

    220

    550

    2''Tri-Clamp(Coupling)/Flanged Type/Thread( NPT/BSP)

    #1

    One

    20

    BJD2

    220

    950

    #2

    40

    BJD4

    130

    650

    #4

    12

    Muti-Bag Filters

    BJD2-2

    400

    1550

    3'', 4", 5" Tri-Clamp(Coupling)/Flanged Type/Thread( NPT/BSP)

    #2

    Two

    80

    BJD2-3

    500

    1550

    #2

    Three

    120

    BJD2-4

    550

    1550

    #2

    Four

    160

    BJD2-5

    600

    1550

    #2

    Five

    200



    Certificate

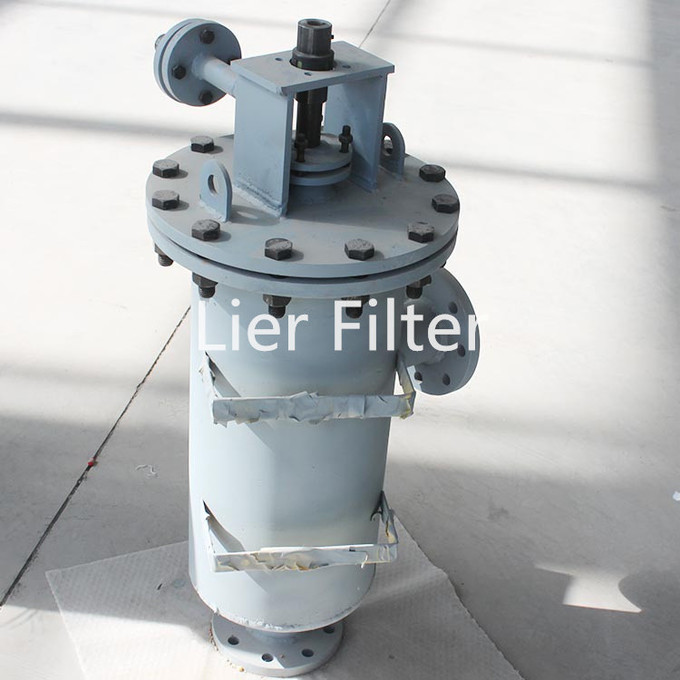

    photos
    Muti Bag Industrial Basket Strainer 0.05MPa Rated Flow ResistanceMuti Bag Industrial Basket Strainer 0.05MPa Rated Flow Resistance


    Company Profile
    Xinxiang Lier Filter Technology Co.,Ltd was established in 2005, which has more than 10 years history factory,our main products are as follows:
    1. Sintered stainless steel mesh
    2. Sintered stainless steel fiber felt
    3. Sintered filter cartridge, pleated cartridge
    4. Sintered filter disc
    5. Sintered metal powder
    All kinds of industrial filters
