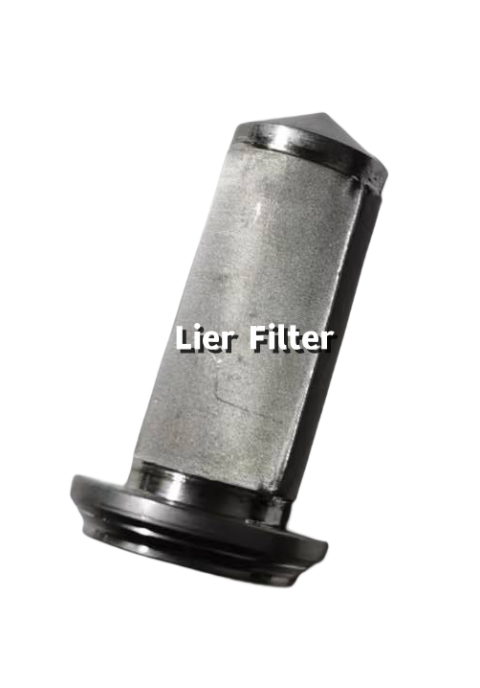

Introduction of Sintered Multi-layer Valve Filter Element
Sintered multi-layer valve filter element is welded by vacuum
electron beam,used for filtration of hydraulic oil and gas in
hydraulic and air control system.The features of it are high
precision,good rigidity,lower resistance,large flow capacity.And
also it has advantages of cleanness,easy use,stable filtering
aperture and longer service,it is alternative for sintered bronze
powder filter element(the first generation valve filter),and metal
mesh filter supported by framework(the second generation valve
filter)and even imported wire wound filter element ,to make the
serve system more stable and morereliable.It is widely used in many
fields such as aerospace,aviation,hydraulic machine,precision tool
and automatic control.
Product Features
1. Large welding penetration, small error and high weld strength;
2. Narrow weld, generally only 1-1.5mm, very suitable for small
size filter element filter plate manufacturing (solve the original
impossible problem);
3. Small deformation, high qualified rate, stable quality;
4. Because the welding does not oxidize, the weld is fine, the
element is beautiful;
5. Can replace imported and used for military products.
Technical Parameters
| Working pressure | Less than or equal to 32MPa |
| Rated flow | 10~100L/min |
| Filtration accuracy | 3um (can be customized) |
| Operating temperature | -30℃ ~ 90℃ |
| Working medium | hydraulic oil, aviation hydraulic oil and other media |
Sintered Filter Element Product Parameters
| type | nominal precision(um) | absolute accuracy(um) | air permeability (L/min ·cm2·pa) | bubble point pressure(pa) |
| AI1 | | 6-7 | | 5300-6000 |
| AI2 | 2 | 8-9 | (1-6)×10-4 | 4300-5000 |
| AI5 | | 11-13 | (6-10)×10-4 | 3000-3700 |
| AI10 | 10 | 16-18 | (6-10)×10-4 | 2700-3300 |
| AI15 | 15 | 24-26 | (1-6)×10-3 | 2000-2600 |
| AI20 | 20 | 28-32 | (1-6)×10-3 | 1800-2300 |
| AI25 | 25 | 34-36 | (6-10)×10-3 | 1400-1900 |
| AI30 | 30 | 40-45 | (6-10)×10-3 | 1200-1700 |
| AI40 | 40 | 50-55 | (1-6)×10-2 | 1000-1500 |
| AI50 | 50 | 71-80 | (1-6)×10-2 | 900-1200 |
| AI70 | 70 | 80-95 | (6-10)×10-2 | 700-1100 |
| AI100 | 100 | 110-120 | ≥5×10-2 | 650-1000 |
Product Advantages
1.Filtration Specialists with 10 years´ experience.
2.OEM Service for you and satisfy different markets demand.
3.Widely used in Aviation , Railway, Power plant, Coal mining,
Construction mining etc.
4.Samples for 1 pcs and small order 5pcs are allowed.
5.Professional technical data systems guaranteed the correctness of
filter.

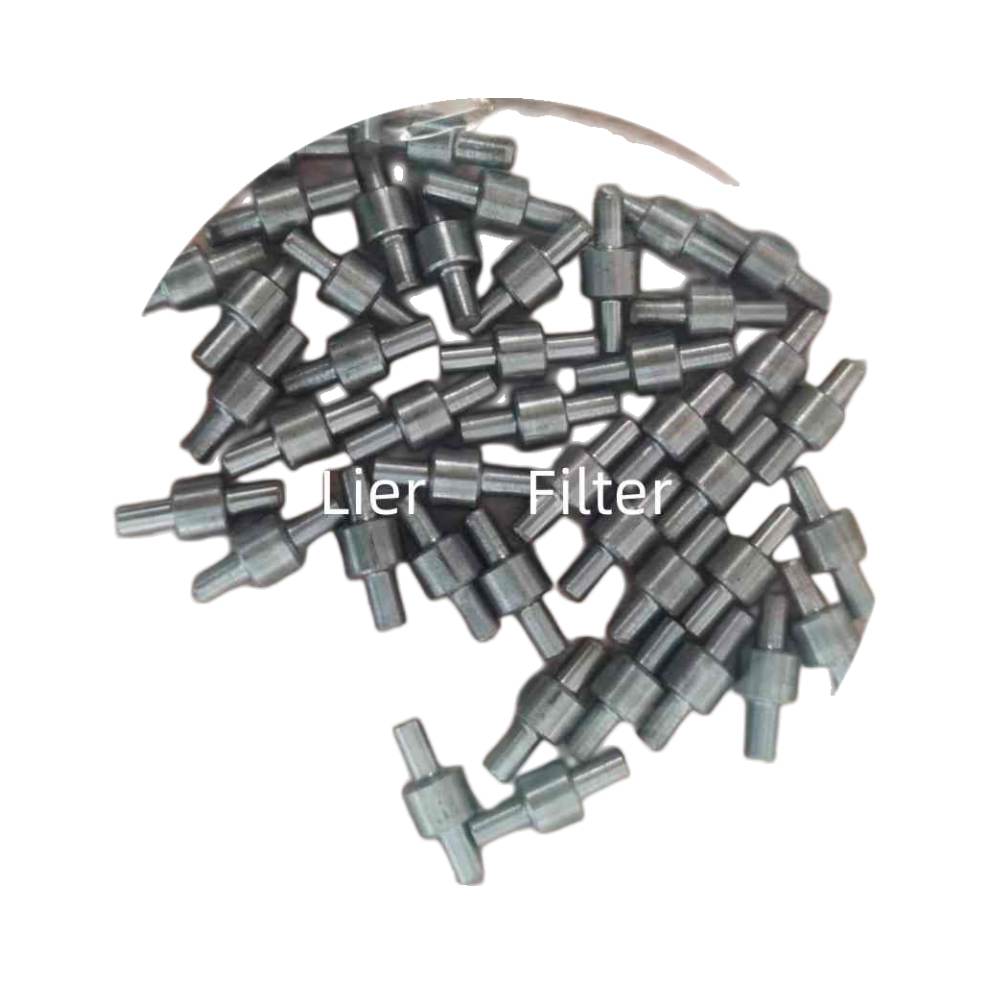

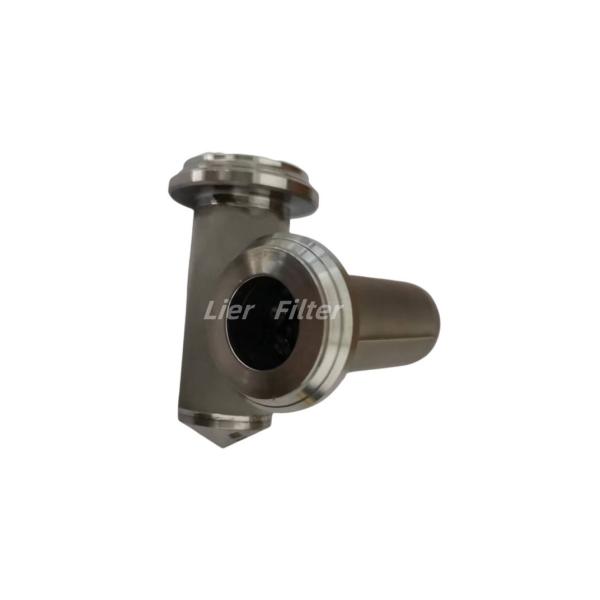

Related Photos
The Reason for Choosing Us
Our Certificate
Packing
Transportation
FAQ
Q: What parameters need to provide for the design of the filter
element?
A: Length, width, height, material, diameter, precision, connection
method, etc. If there are other necessary parameters, please
explain together.
Q: Are you trading company or manufacturer?
A: We have our own factory and production line. Everything is very
flexible, no need to worry about additional costs. At the same
time, quality can also be guaranteed.
Q: How many years of production and export experience do you have?
A: We have more than 20 years of production experience and 15 years
of export experience. Our products have been used all over the
world and have a good reputation, please rest assured to use.
